Wcf Binding Box: Security usage patterns


WCF Binding Box is on air for over six months now. Hopefully it will stay there for a while, at least until Azure will close the free trial period. For those of you who forgot, the binding box allows to convert any WCF binding (e.g. WSHttpBinding) to a CustomBinding.

Around 1500 users have converted their bindings already. This seems like a good time to analyze some WCF security usage patterns.

Message Security Type

The first aspect I analyzed is the security type people use. Results show that over 60% of users apply some message level security (possibly together with ssl). One possible explanation to this result is that message level security is the default with Wcf (in contrary to most legacy soap stacks). Another explanation is this: People who work with message level security have much more available configurations, so they seek the binding box in order to get a custom binding. This means the measurement here may be a little biased.

(click image to enlarge)

Client Credential Type (Message)

The second question I tested is which message credentials are most popular. The results show that username authentication is by far the most popular authentication mechanism. This is expected considering that usernames are the easiest to work with and offer the best interoperability. We can tie this together with the huge interest in ClearUsernameBinding. Windows authentication gets a relatively low share which may indicate that most binding box users wrote internet and not intranet applications.

(click image to enlarge)

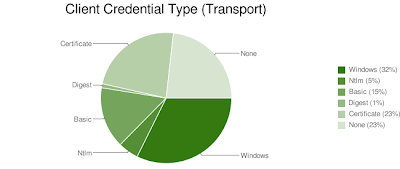

Client Credential Type (Transport)

Finally I have tested which are the most popular client authentication types with transport security. Here domain based authentication (windows, ntlm) is used by almost 40% of the users. Basic authentication is only 15% which is surprising taking into consideration that the most popular message level authentication mechanism is a UserName token. A quarter of the users chose the Certificate authentication type. We can add to this the fact that client certificates have a similar message level share, and that server side certificates are used in all of the transport modes and in most message level modes. This shows that most organizations deal with X.509 certificates this way or the other.

(click image to enlarge)
